CAT Pressure Reduced - CPR Cat Packs

Price: $640.00
  • SKUCACPR

We Also Include

  • Wet Mil Gauge

Optional Needle/Orifice Sets

CAT Pressure Reduced  By C.A. Technologies

Remember, FREE SHIPPING on New Systems to Canadian Addresses!  Order Now!



C.A. Technologies is further proving themselves as the technology leader in spray gun manufacturing.  The new CPR (CAT Pressure Reduced) Spray Guns combine the transfer efficiency of HVLP with the speed and finish quality of conventional air spray.

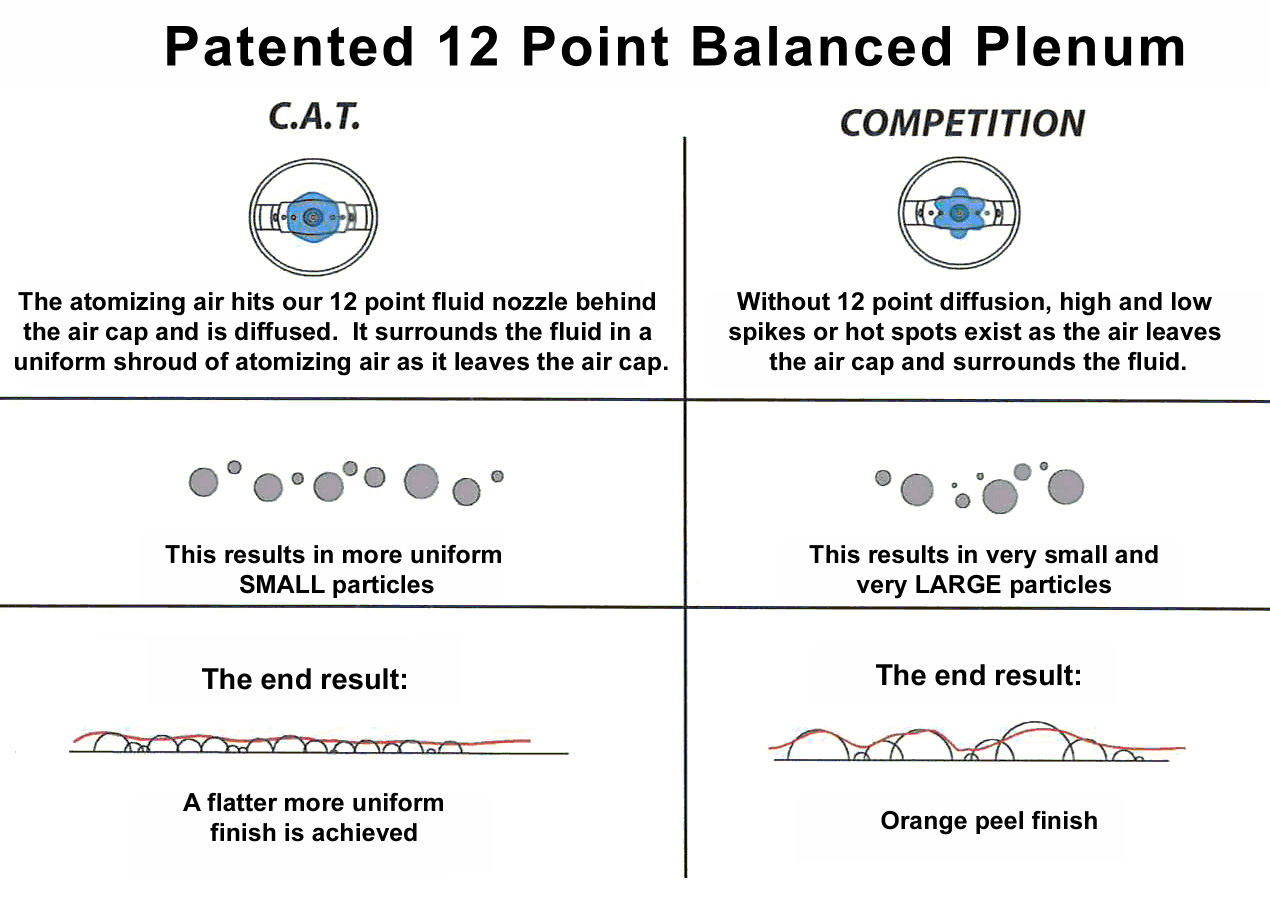

CPR Spray Guns utilize C.A. Tech's patented 12 point balanced plenum design for smoke like atomization.  The more uniform and smaller particles result in a more even finish.



CPR Spray Guns are arranged in pre-configured kits for the best value.  Each kit includes both the CPR and an HVLP Air Cap along with 3 different needle/nozzles to spray different materials.  The kits also include a mini regulator, multi-purpose wrench, nozzle wrench and cleaning brush all packed neatly into a hard shell case for protection.



The CPR Packs can be ordered in a Gravity Feed or Pressure Feed Configuration.



The Gravity Feed models are available with a 1 quart Aluminum Cup or with the 1 Quart 3M PPS System.



The Pressure Feed models are available with a 1 quart Aluminum Pressure Cup or with the 3M PPS Pressure Cup System.  Pressure Feed models can also be ordered without a cup for attachment to a remote pressure pot such as the C.A.T. Bandit or others.  See our Pressure Pot Outfits for more details.



Futher, the CPRs are available a as a traditional solvent finish version or labelled as an H2O version for Waterborne shops.  The spray gun and performance is identical between the two models other than the "H2O" Identification printed on the handle.



Be sure to contact us by phone or email if you have questions or require a special configuration.



C.A.T. CPR (Cat Pressure Reduced Spray Gun)

  • New HTE (High Transfer Efficiency) Technology
  • Faster production rates than HVLP, but low overspray.
  • Non-Corrosive wet parts
  • Full kit with accessories included in hardshell case
  • 3 Needle/Nozzle sets included for broad range of spray applications and great value!
  • HVLP & CPR Style Air Caps inluded!
  • Repair Kits and Spare Parts are In Stock!
  • 100% USA Made



H2O CPR  Pressure

Body: Forged, Anodized Aluminum
Fluid Passages: Stainless Steel
Air Cap: Anodized Aluminum
Needle/nozzle sizes: 0.8, 1.0, 1.3, 1.4, 1.5, 1.7, 1.9, 2.2 mm
Working pressure: 29 psi
Air Consumption: 11cfm w/CPR Aircap or 13cfm w/HVLP Aircap









CPR Kits Include:

  • CPR Spray Gun labelled for H2O or Traditional
  • 3 Different Needle/Nozzle Sets
  • HVLP & CPR Air Caps
  • Gravity: Choice of 1 Quart Alum Cup or 3M PPS
  • Pressure: Choice of No Cup or 1Qt Alum Cup or 3M PPS
  • Mini-Regulator/Gauge Included
  • Multi-Purpose Wrench
  • Nozzle Wrench
  • Cleaning Brush
  • Hard Shell Storage Case.
  • Lifetime Warranty

Needle/Nozzle Sizes Included with Kits:

  • H2O Models (Gravity & Pressure) - 1.3, 1.5, 1.7mm
  • Traditional/Solvent Gravity - 1.0, 1.3, 1.7mm
  • Traditional/Solvent Pressure - 0.8, 1.3, 1.7mm

Needle/Nozzle Substitutions ARE allowed.  Simply let us know your requirements.

 C.A.T.   CPR Pressure Pack  C.A.T.   H2O CPR Gravity Pack

3M PPS Option Includes:

  • PPS Spray Gun Adapter
  • 1 Qt PPS Gravity or Pressure Cup/Collar
  • 3 PPS Lids w/integrated filter
  • 3 PPS Liners
Cup Size Substitutions ARE allowed.  Simply let us know your requirements.
PPS Re-fills & Accessories are available here.

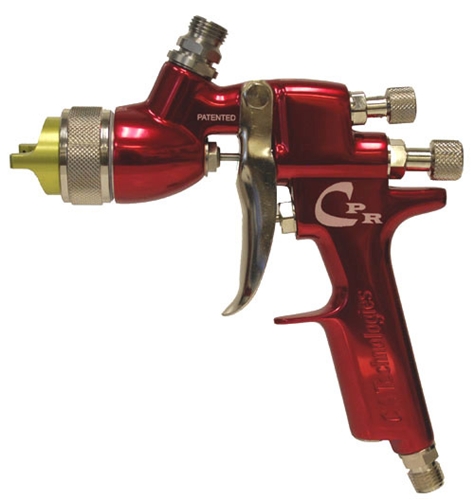

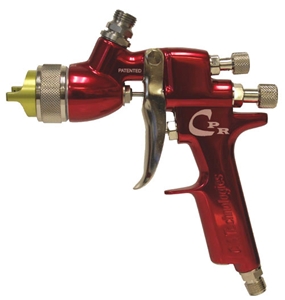

C.A.T. CPR Gravity
C.A.T CPR Gravity Spray Gun
High Transfer Efficiency
  H2O CPR Gravity Parts Diagram

  Solvent CPR Gravity Parts Diagram

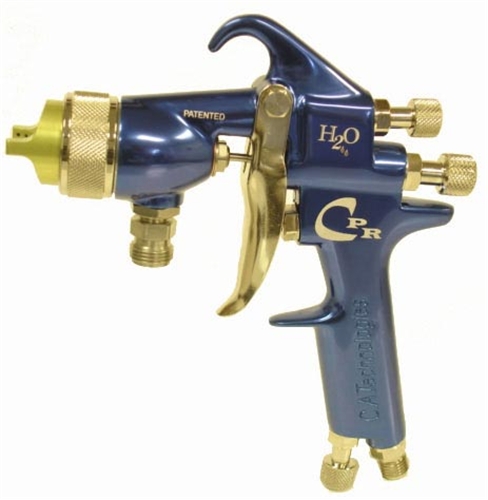

H2O CPR Pressure
C.A.T CPR H2O Pressure Spray Gun
High Transfer Efficiency
  H2O CPR Pressure Parts Diagram

  Solvent CPR Pressure Parts Diagram
